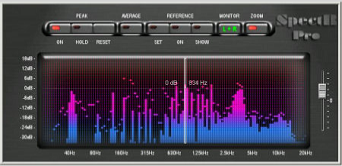

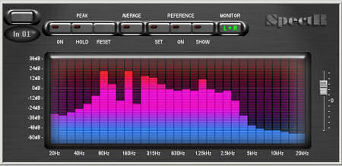

The SpectR-Pro Bundle is a signal analyzer package for SAWStudio digital audio workstations consisting of three SAW native plugins: SpectR-Pro, SpectR, and Focus. SpectR-Pro is a 120 band 1/12 octave spectrum analyzer, while SpectR is a 31 band 1/3 octave spectrum analyzer. Both SpectR-Pro and SpectR display real-time frequency response from 5hz to 20khz over an adjustable 100dB range. Numerous options provide ways to adjust SpectR-Pro to specific audio signals: • Meter level is adjustable • Meters can display instantaneous Peak levels or a rolling Average level • Peaks can be turned on or off and set to decay or fall • Monitor the stereo signal, left or right channels independently • SpectR-Pro has a unique feature which can capture the frequency response of a reference signal and store it as an EQ curve. This EQ curve can be statically displayed for a visual reference, or can be applied to an input signal in real time to view the offset between the input signal and the stored EQ curve. Focus is a phase correlation meter using a "lissajous curve" oscilloscope type display. Focus shows signal data on an X/Y grid and can help in alerting you to phase problems and stereo image issues, and is also useful in calibrating the azimuth of analog tape recorders. SpectR-Pro, SpectR and Focus all can analyze the live monitored signal using SAWStudio's input monitoring. Known issue: SpectR-Pro and SpectR do not display correctly at sample rates above 48kHz. DOWNLOAD THE TONEGEN PLUGIN When installing enter > user name: brainspawn license key: 9A00D-AF740-7ADFD-0887C download this license key  ToneGen is a tone generator plugin for SAWStudio digital audio workstations which can produce a range of sine waves, sweeps and noise. ToneGen can generate four types of test signals: • sine waves from 5.5 Hz to 20kHz with frequency and gain adjustable during playback. • logarithmic sweeps of any duration, either up or down. Starting and ending frequencies are fully adjustable between 5.5Hz and 20kHz. • white noise using a gaussian distribution. • pink noise using the Voss-McCartney algorithm. All signal generators operate independently with adjustable gain, including a source input, and the controls may be automated. PLEASE NOTE: in order for the tones to be audible a region must be placed farther down on the multitrack timeline in the input channel that the ToneGen plugin is loaded in. Known issue: ToneGen does not output tones correctly at sample rates above 48kHz. DOWNLOAD THE SP-1 STEREO PANNER No activation key is needed when installing. The SP-1 Stereo Panner allows the Left and Right channels of a stereo file to be attenuated and panned independently of each other. All parameters are automateable. Activating the “Gang” control allows any of the parameter controls to be linked together. Acknowlegements: Special thanks goes to Mike Garrett and Greg Head of Brainspawn for making these discontinued and formerly commercial plugins free to all SAWStudio users. DISCLAIMER: Neither Brainspawn Inc. nor Total Sonic Media warrants or supports these plugins in any way. Use them solely at your own risk!

DOWNLOAD THE SPECTR-PRO BUNDLE When installing enter > user name: brainspawn license key: A7765-1213C-A2AD2-4DE19 download this license key
